Enjoying the course which is very interesting. Apologies if this is a silly question but I do not understand the instructions about plugging in the USB dongle. Is this part of the battery board in the Freaklabs kit? Just a little confused as to how to plug it in, as I cannot locate anything in the kit with a USB plug.
8 December 2020 1:56am
Hi. I've attached a picture of what should have come with your kit. There should be a USB to serial device there and it's the thing with the 6-pin red and black cable connecting to it. You will need to provide a USB Mini-B cable to complete the connection to the computer though. These can usually be acquired on Amazon or at electronics shops. I've also attached a pic of the mini-B USB cable below.
Hope that helps.
Akiba
Freaklabs
8 December 2020 2:02am

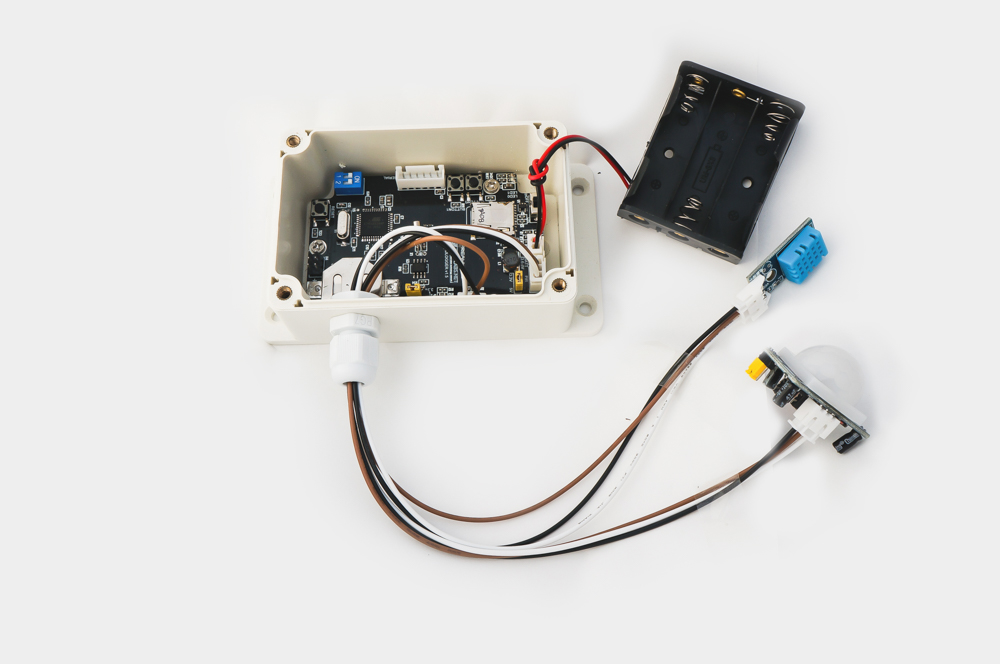

Oops, here is the pic of the kit
Akiba
Freaklabs
4 January 2021 5:19pm
Hi Liam.
To get the cables through the cable gland, we'll need to remove the wires from the terminal housing and then reinstall them. That will be in a later module.
Akiba
Akiba
Freaklabs
